17-4PH stainless steel round steel

stainless steel bar

17-4PH stainless steel round steel

ParameterProduct Name17-4ph stainless steel round barTypeCold drawn, Hot rolled, Forged,ShapeRoundStandardGB,AISI,ASTM,DIN,EN,JISGradeStainless steel 304 / 304L / 310S / 316L / 316Ti / 316LN / 317L / 904L / 2205 / 2507 / 32760 / XM-19 / S31803 /S32750 / S32205 / F50 / F60 / F55 / F60 / F61 / F

✚ Location:Home >> Products >> stainless steel bar
stainless steel round bar

17-4PH stainless steel round steel

Product characteristics:
Standard : ASTM
Grade : precipitation-hardening
Steel Grade : 301L, S30815, 301, 304N, 310S, S32305, 410, 204C3, 316Ti, 316L, 441, 316, L4, 420J1, 321, 410S, 410L, 436L, 443, LH, L1, S32304, 314, 347, 430, 309S, 304, 439, 425M, 409L, 420J2, 204C2, 436, 445, 304L, 405, 370, S32101, 904L, 444, 301LN, 305, 429, 304J1, 317L
Model Number : 630,17-4PH,17400,1.4542
Standard : ASTM-A564,ASTM-A705M,EN-10088-3,RCCM M5110
Service hotline:+8613964085002
Get a quote Contact immediately
Product details

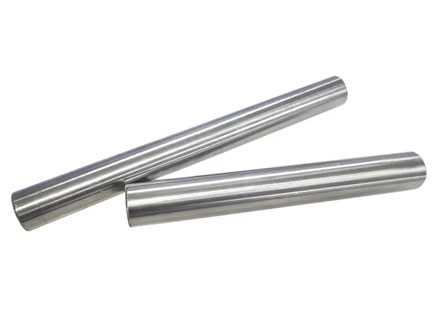

17-4PH stainless steel round steel description


17-4PH(05Cr17Ni4CuNb) steel, is a kind of Cr17 martensitic stainless steel based on the development of low carbon martensitic precipitation hardening type stainless steel, due to the low carbon content in the matrix, corrosion resistance and weldability are better than other martensitic stainless steel, and close to some austenitic stainless steel, and has good comprehensive mechanical properties. It can be widely used in high-tech fields such as aviation, aerospace chemistry and nuclear industry. Our company produces the die forging products of this material, and the delivery state is solid solution aging heat treatment after forging, which is mainly used for the production and processing of aviation high temperature and high pressure fan blade manufacturing.

17-4PH is precipitated, hardened, martensitic stainless steel composed of copper, sharp /. This grade features high strength, hardness (up to 300°C/572 "F) and resistance to corrosion. After heat treatment, the mechanical properties of the product are more perfect, and can reach a compressive strength of up to 1100-130 pa (160-190 ksi). This grade cannot be used above 300 "C(572°F) or at very low temperatures, and it has good corrosion resistance to the atmosphere and diluted acids or salts.


Parameter

Product Name

17-4ph stainless steel round bar

Type

Cold drawn, Hot rolled, Forged,

Shape

Round

Standard

GB,AISI,ASTM,DIN,EN,JIS

Grade

Stainless steel 304 / 304L / 310S / 316L / 316Ti / 316LN / 317L / 904L / 2205 / 2507 / 32760 / XM-19 / S31803 /
S32750 / S32205 / F50 / F60 / F55 / F60 / F61 / F65 etc

Monel 400 / Monel K-500

Inconel 600 / Inconel 601 / Inconel 625 / Inconel 617 / Inconel 690 / Inconel 718 / Inconel X-750

Incoloy A-286 / Incoloy 800 / Incoloy 800H / Incoloy 800HT

Incoloy 825 / Incoloy 901 / Incoloy 925 / Incoloy 926

Nimonic 75 / Nimonic 80A / Nimonic 90 / Nimonic 105 / Nimonic C263 / L-605

Hastelloy B / Hastelloy B-2 / Hastelloy B-3 / Hastelloy C / Hastelloy C-276 / Hastelloy C-22

Hastelloy C-4 / Hastelloy C-2000 / Hastelloy G-35 / Hastelloy X / Hastelloy N

PH stainless steel 15-5PH / 17-4PH / 17-7PH

Diameter

6mm - 600mm

Finish

Bright, Pickling, Black, Polished

Packing

Wooden box, Waterproof polybag

Inspection

TUV,BV,ABS,LR and so on

Application

Construction, shipbuilding, Chemical, Pharmaceutical & Bio-Medical, Petrochemical & Refinery, Environmental, Food Processing,
Aviation, Chemical Fertilizer, Sewage Disposal, Desalination, Waste Incineration etc.

Processing Service

Machining : Turning / Milling / Planing / Drilling / Boring / Grinding / Gear Cutting / CNC Machining

Deformation processing : Bending / Cutting / Rolling / Stamping

Forged

Sample

Free
